User's Guide

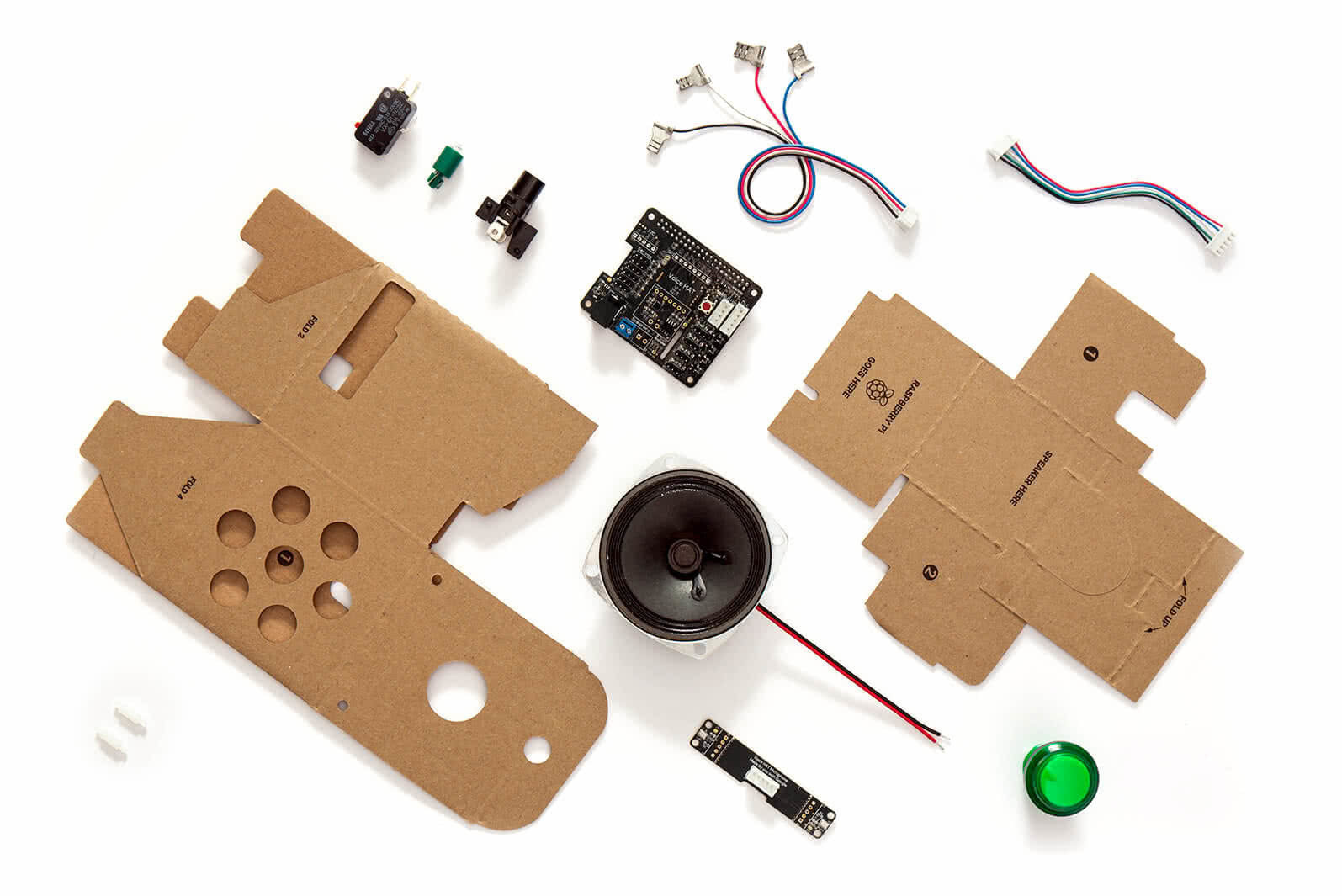

Kit Content

Included

Voice HAT accessory board (×1)
Voice HAT microphone board (×1)
Plastic standoffs (×2)
3” speaker (wires attached) (×1)
Arcade-style push button (×1)
4-wire button cable (×1)
5-wire daughter board cable (×1)
External cardboard box (×1)
Internal cardboard frame (×1)
Lamp (×1)
Micro-switch (×1)
Lamp holder

NOT Included

Raspberry Pi 3 (×1)
SD card (×1)
Size “00” Phillips screwdriver (×1)
Scotch tape (x1)

Assembly Hardware

Prepare the software

Start the application

Manual

Automatic (as a service)

#In terminal...
src/main.py

#Start
sudo systemctl start voice-recognizer

#Stop
sudo systemctl stop voice-recognizer

Start on-boot

#In terminal...
sudo systemctl enable voice-recognizer

LED Status Codes

Led Signal	Description
Pulse	The device is starting up, or the voice recognizer has not been started yet
Blink (every few seconds)	The device is ready to be used
On	The device is listening
Pulse	The device is thinking or responding
Pulse → off	The device is shutting down
3 blinks → pause	There’s an error

Maker's Guide

How it works?

Features

Source Code in Github

# terminal
cd $HOME/voice-recognizer-raspi/

Source Code

Config Files

# terminal
cd $HOME/.config/voice-recognizer.ini

# backup
cd $HOME/voice-recognizer-raspi/config

Change activation trigger

Source Code in Github

# terminal
~/voice-recognizer-raspi/src/triggers/*.py

Key file

In manually start

# terminal
python3 src/main.py -T {trigger-name}

Triggers

Trigger name	Description
gpio	Activates by pressing the arcade button
clap	Activates from a single clap or snap

Create a new activation trigger

import RPi.GPIO as GPIO
import time
from triggers.trigger import Trigger
class GpioTrigger(Trigger):
    '''Detect edges on the given GPIO channel and call the callback.'''
    DEBOUNCE_TIME = 0.05
    def __init__(self, channel, polarity=GPIO.FALLING,
                 pull_up_down=GPIO.PUD_UP):
        super().__init__()
        self.channel = channel
        self.polarity = polarity
        if polarity not in [GPIO.FALLING, GPIO.RISING]:
            raise ValueError('polarity must be GPIO.FALLING or GPIO.RISING')
        self.expected_value = polarity == GPIO.RISING
        self.event_detect_added = False
        GPIO.setmode(GPIO.BCM)
        GPIO.setup(channel, GPIO.IN, pull_up_down=pull_up_down)
    def start(self):
        if not self.event_detect_added:
            GPIO.add_event_detect(self.channel, self.polarity, callback=self.debounce)
            self.event_detect_added = True
    def debounce(self, _):
        '''Check that the input holds the expected value for the debounce period,
        to avoid false trigger on short pulses.'''
        start = time.time()
        while time.time() < start + self.DEBOUNCE_TIME:
            if GPIO.input(self.channel) != self.expected_value:
                return
            time.sleep(0.01)
        self.callback()

To add a new activation trigger, you’ll need to create a new source file in the trigger folder, implement a subclass of Trigger (see ~/voice-recognizer-raspi/src/triggers/trigger.py) and add it to the command-line options.

Android Things

Source Code & instructions

Voice commands

Voice command	Response
Hello	Hello to you too
What time is it?	It is <time>. E.g. "It is ten to nine."
Tell me a joke	(listen for the joke response)
Volume up	Increase the volume by 10% and say the new level
Volume down	Decrease the volume by 10% and say the new level
Max volume	Increase volume to 100%

Create a new voice command

To control an LED that you've connected to GPIO 4 (Driver0).

# ~/voice-recognizer-raspi/src/action.py

# =========================================
# Makers! Implement your own actions here.
# =========================================

import RPi.GPIO as GPIO

class GpioWrite(object):

    '''Write the given value to the given GPIO.'''

    def __init__(self, gpio, value):
        GPIO.setmode(GPIO.BCM)
        GPIO.setup(gpio, GPIO.OUT)
        self.gpio = gpio
        self.value = value

    def run(self, command):
        GPIO.output(self.gpio, self.value)

# ...

# =========================================
# Makers! Add your own voice commands here.
# =========================================

actor.add_keyword('light on', GpioWrite(4, True))
actor.add_keyword('light off', GpioWrite(4, False))

Use TensorFlow

Help your fellow makers experiment with on-device TensorFlow models by donating short speech recordings. This small web app will collect short snippets of speech, and upload them to cloud storage. We'll then use these recordings to train machine learning models that will eventually be able to run on-device, no Cloud needed.

Open Speech Recording

Logs

# Terminal
sudo journalctl -u voice-recognizer -n 10 -f

See logs

Log sample

Clap your hands then speak, or press Ctrl+C to quit...
[2016-12-19 10:41:54,425] INFO:trigger:clap detected
[2016-12-19 10:41:54,426] INFO:main:listening...
[2016-12-19 10:41:54,427] INFO:main:recognizing...
[2016-12-19 10:41:55,048] INFO:oauth2client.client:Refreshing access_token
[2016-12-19 10:41:55,899] INFO:speech:endpointer_type: START_OF_SPEECH
[2016-12-19 10:41:57,522] INFO:speech:endpointer_type: END_OF_UTTERANCE
[2016-12-19 10:41:57,523] INFO:speech:endpointer_type: END_OF_AUDIO
[2016-12-19 10:41:57,524] INFO:main:thinking...
[2016-12-19 10:41:57,606] INFO:main:command: light on
[2016-12-19 10:41:57,614] INFO:main:ready...

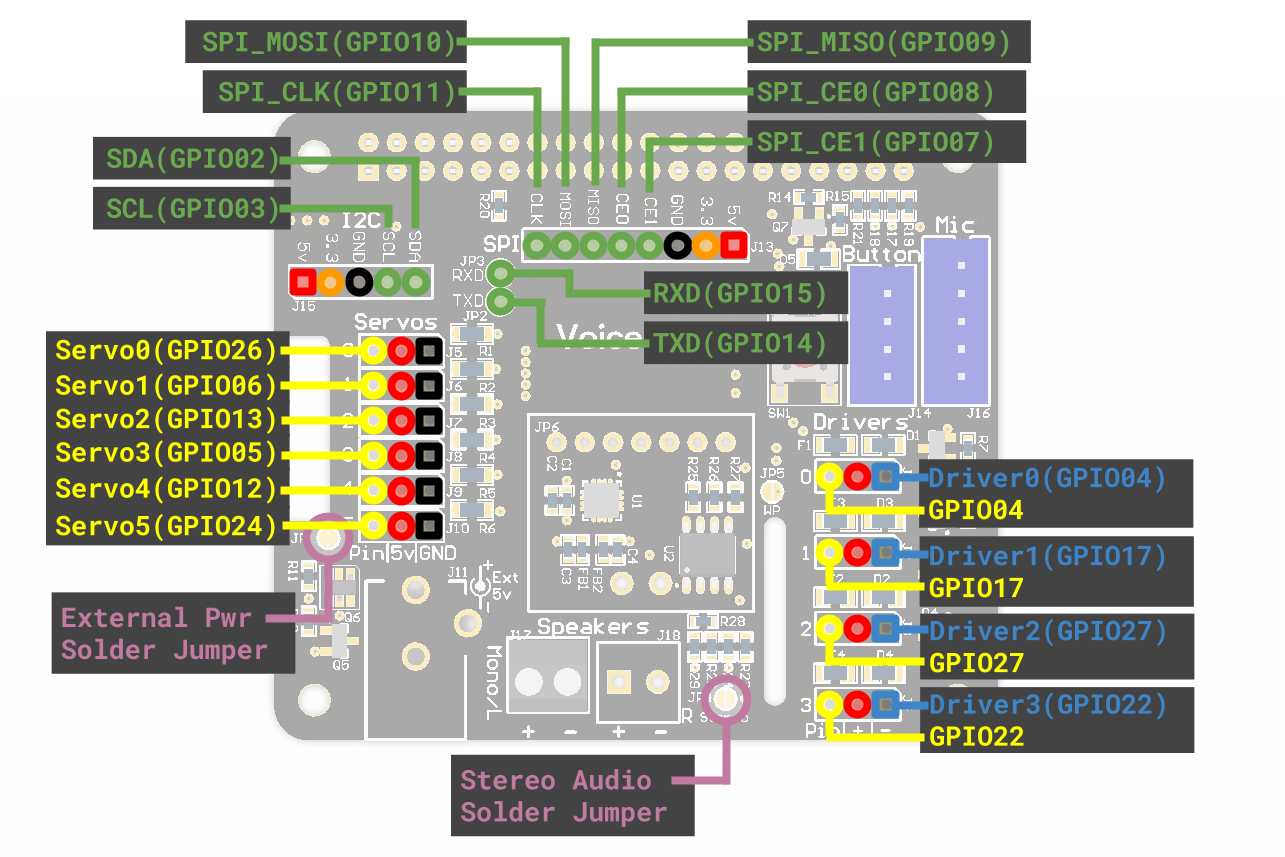

Hardware

GPIO Description

Innovation happends

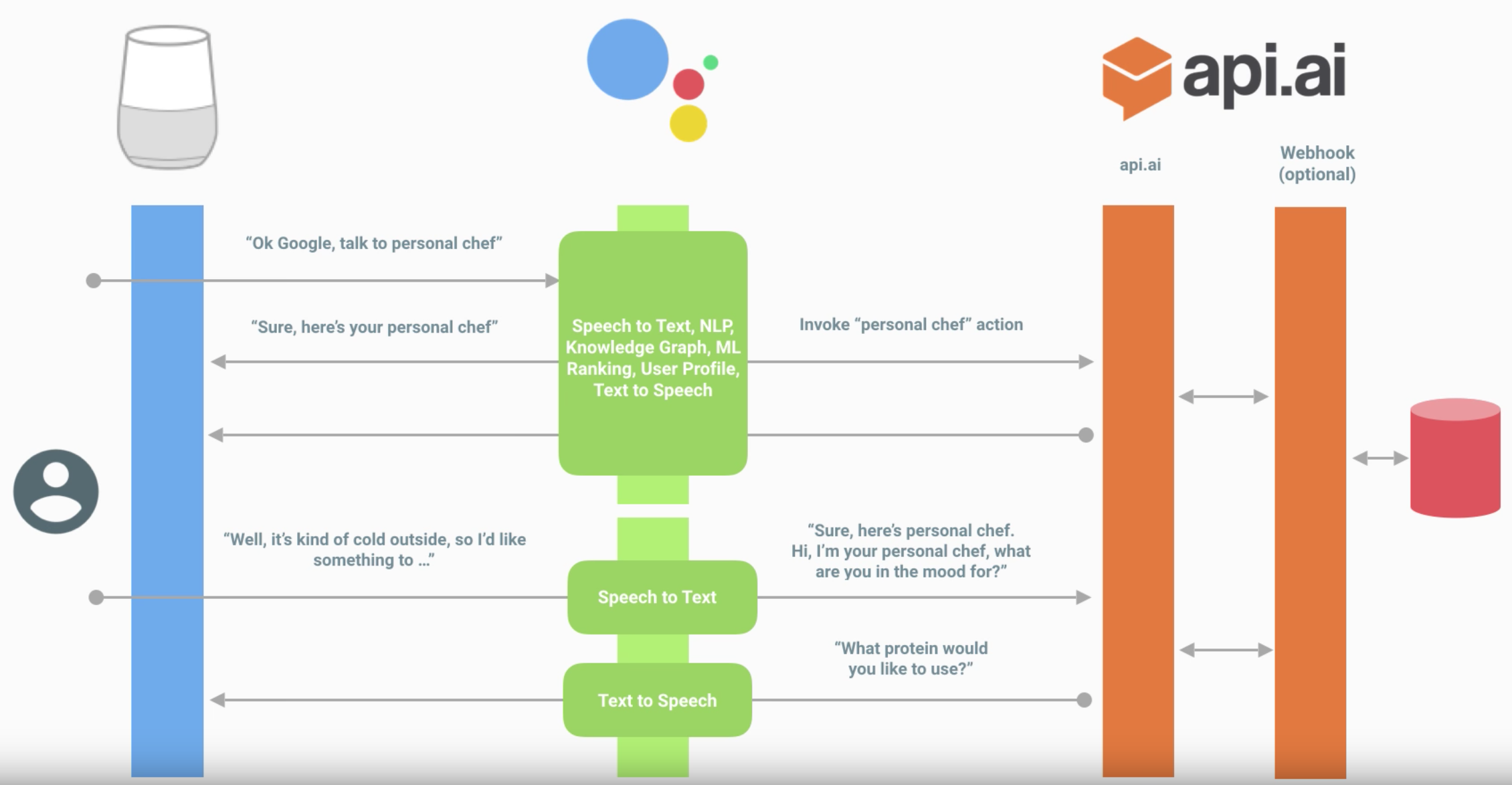

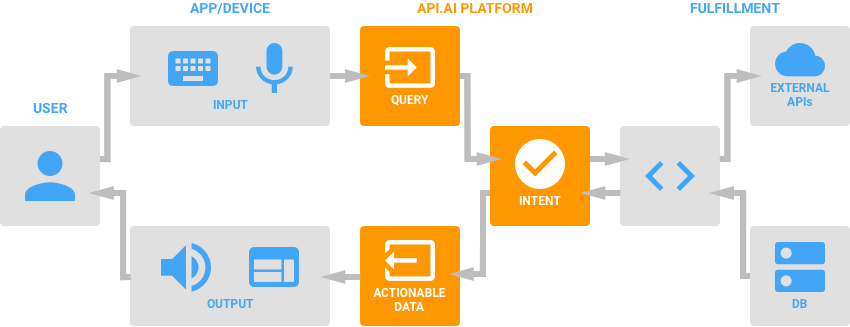

Api.ai

Web Site

Documentation

Example Video

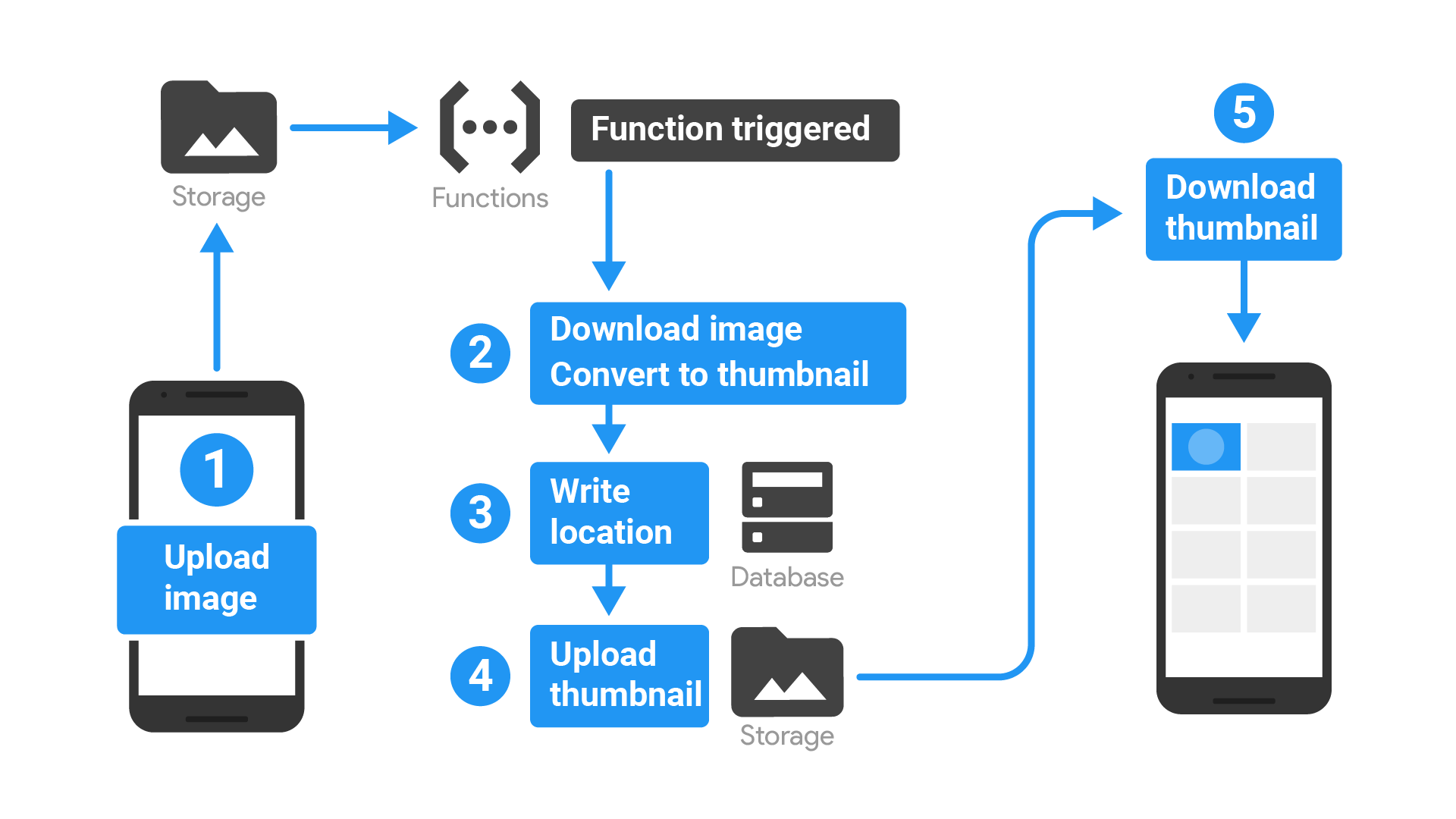

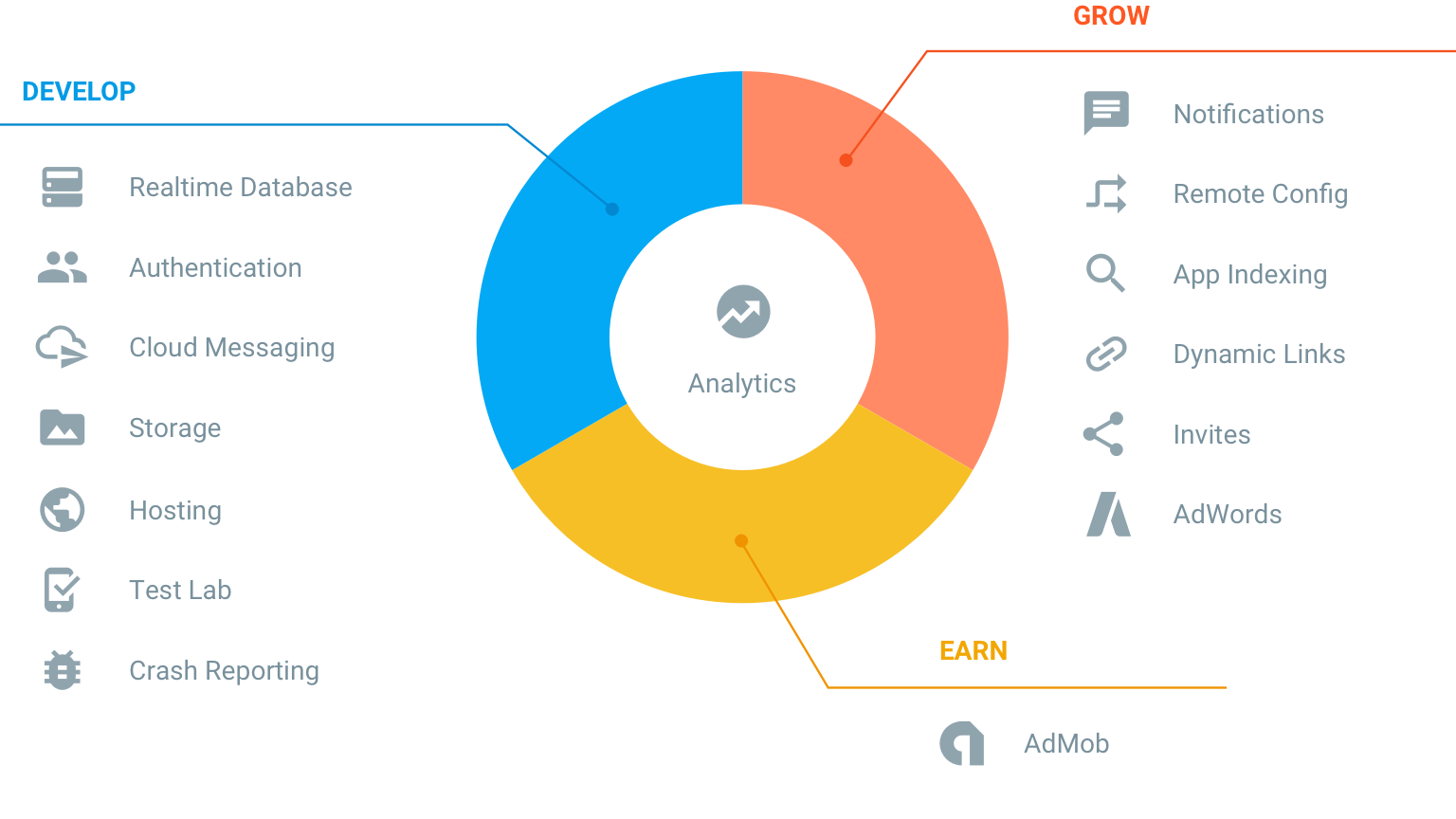

Firebase

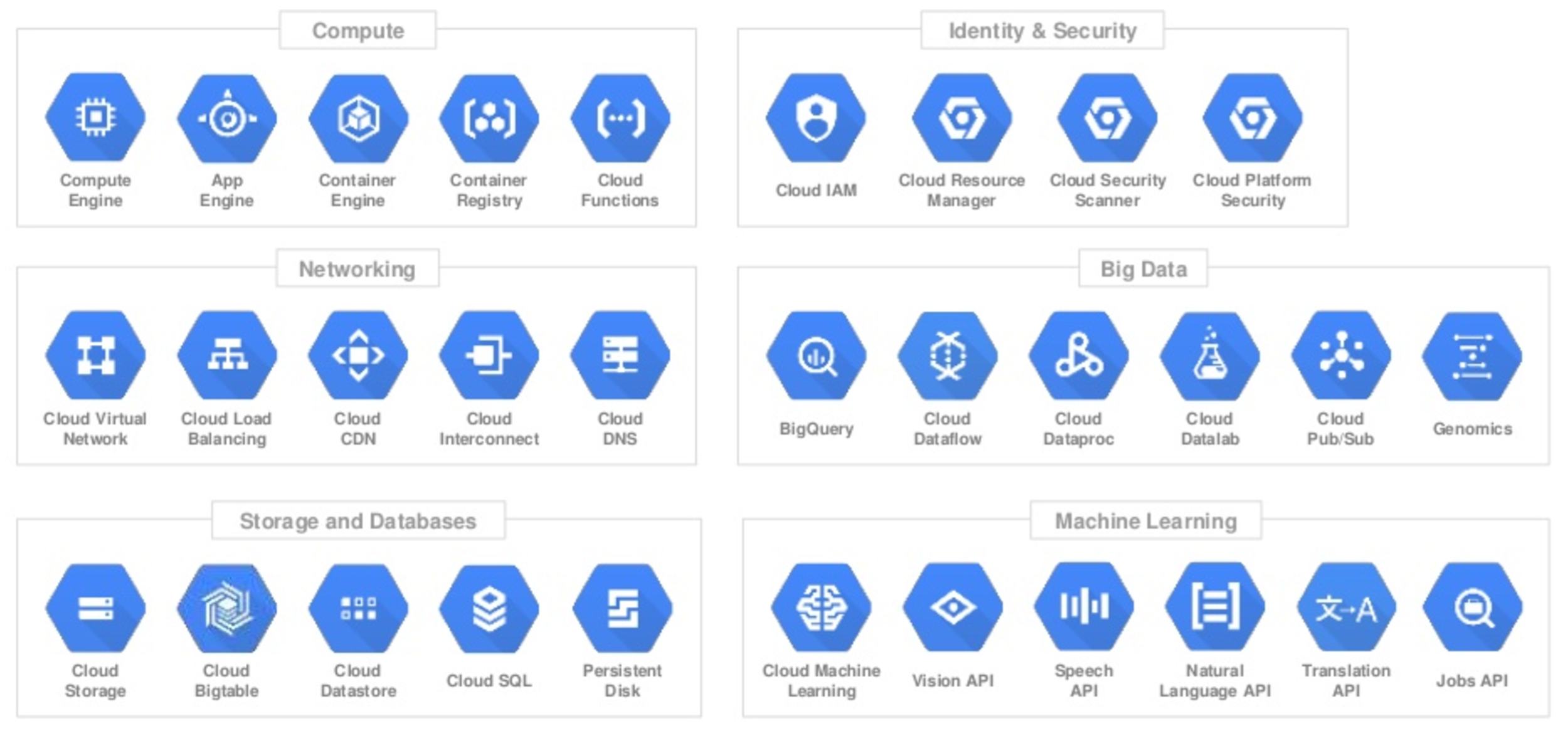

Google Cloud

Products

Documentation

Community

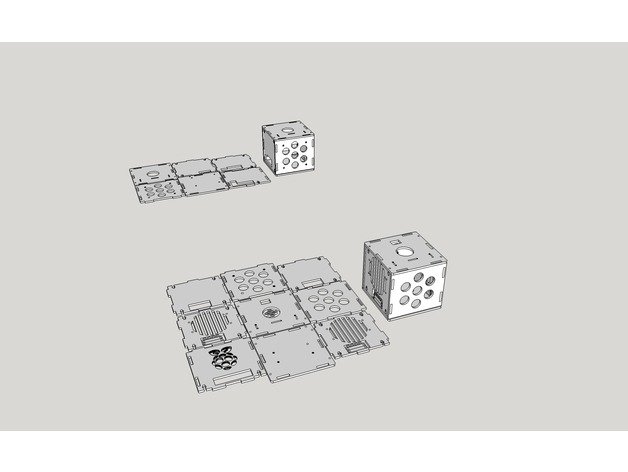

Laser Cut Enclosure

gmusicaiy

Source Code

Video

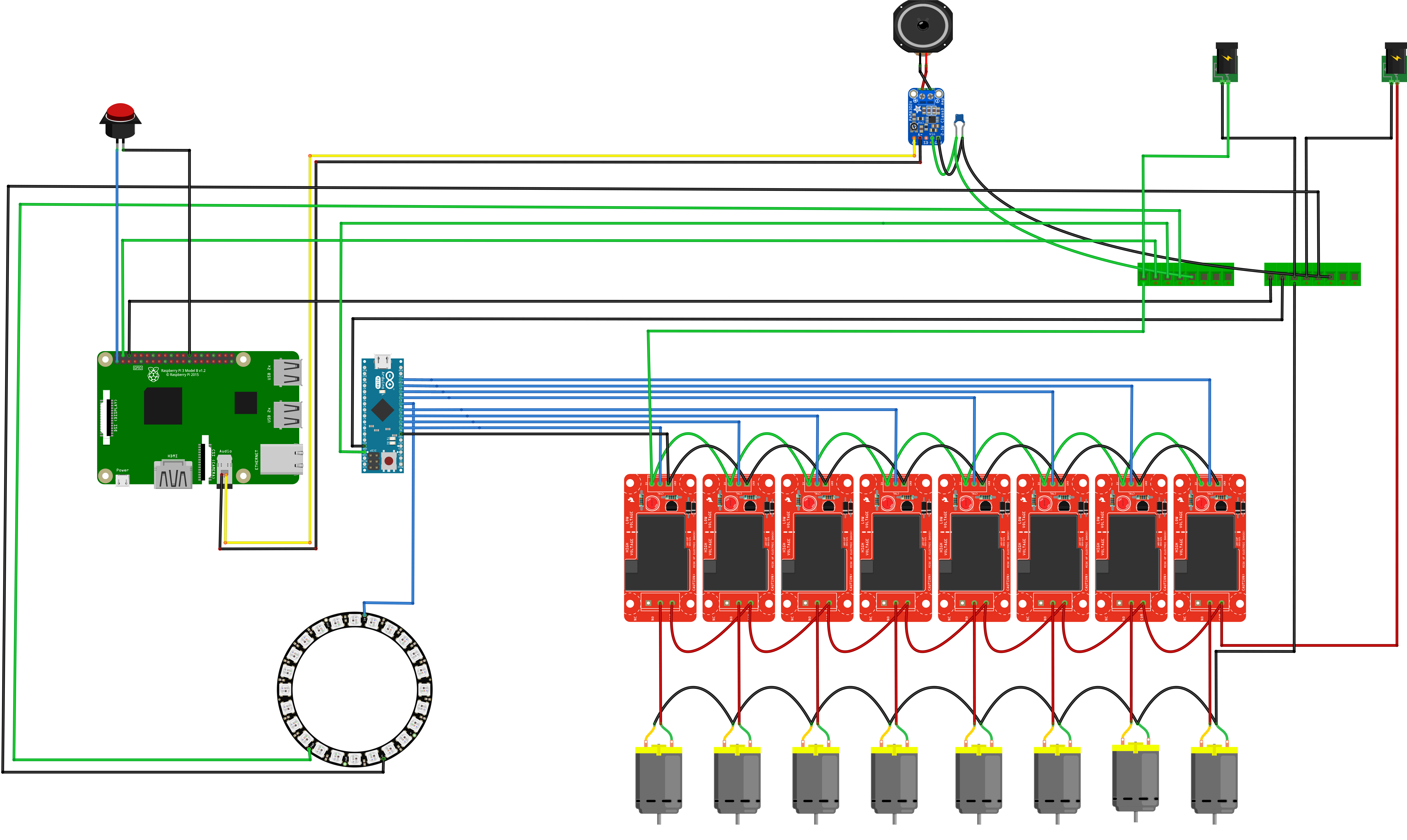

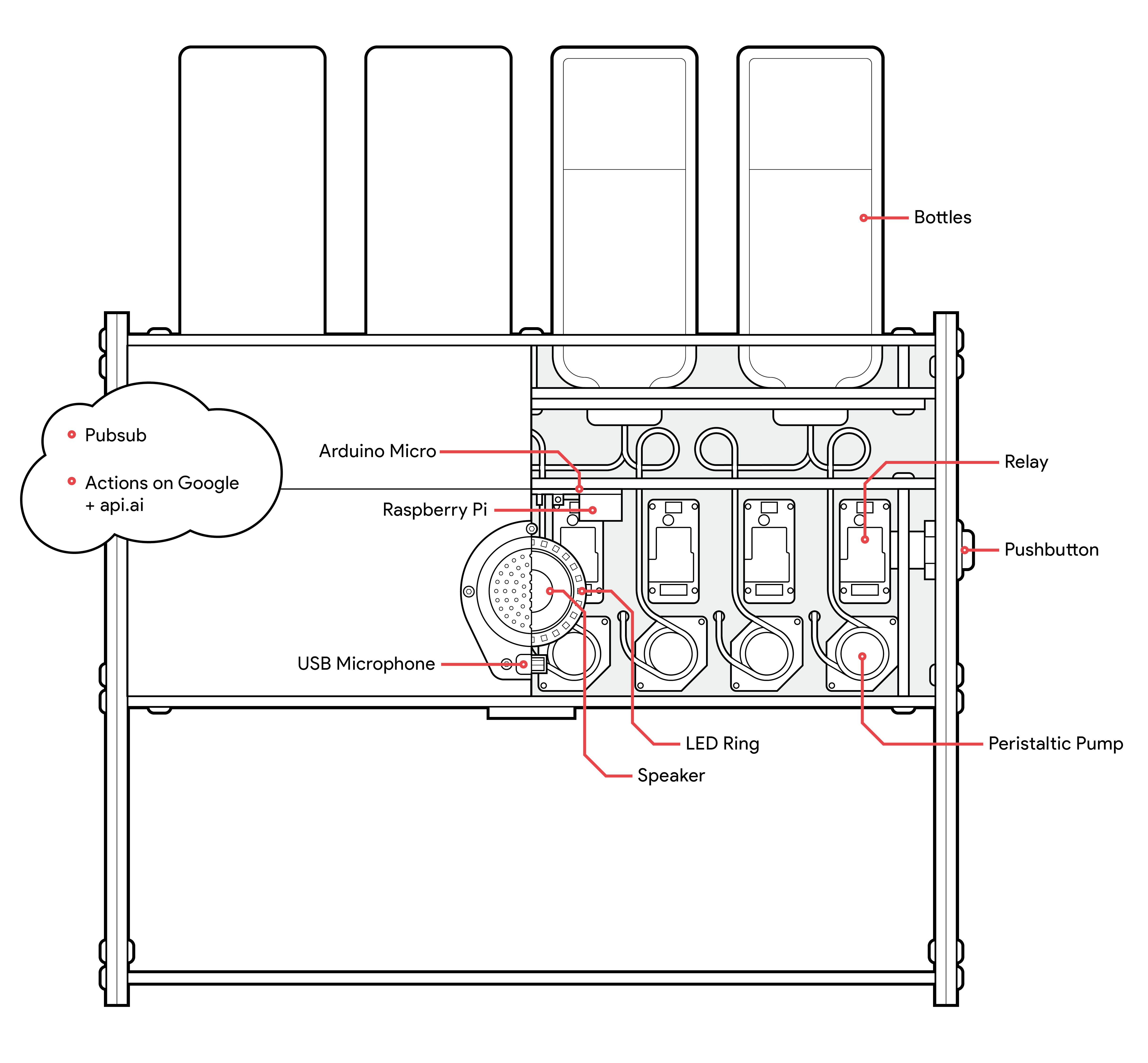

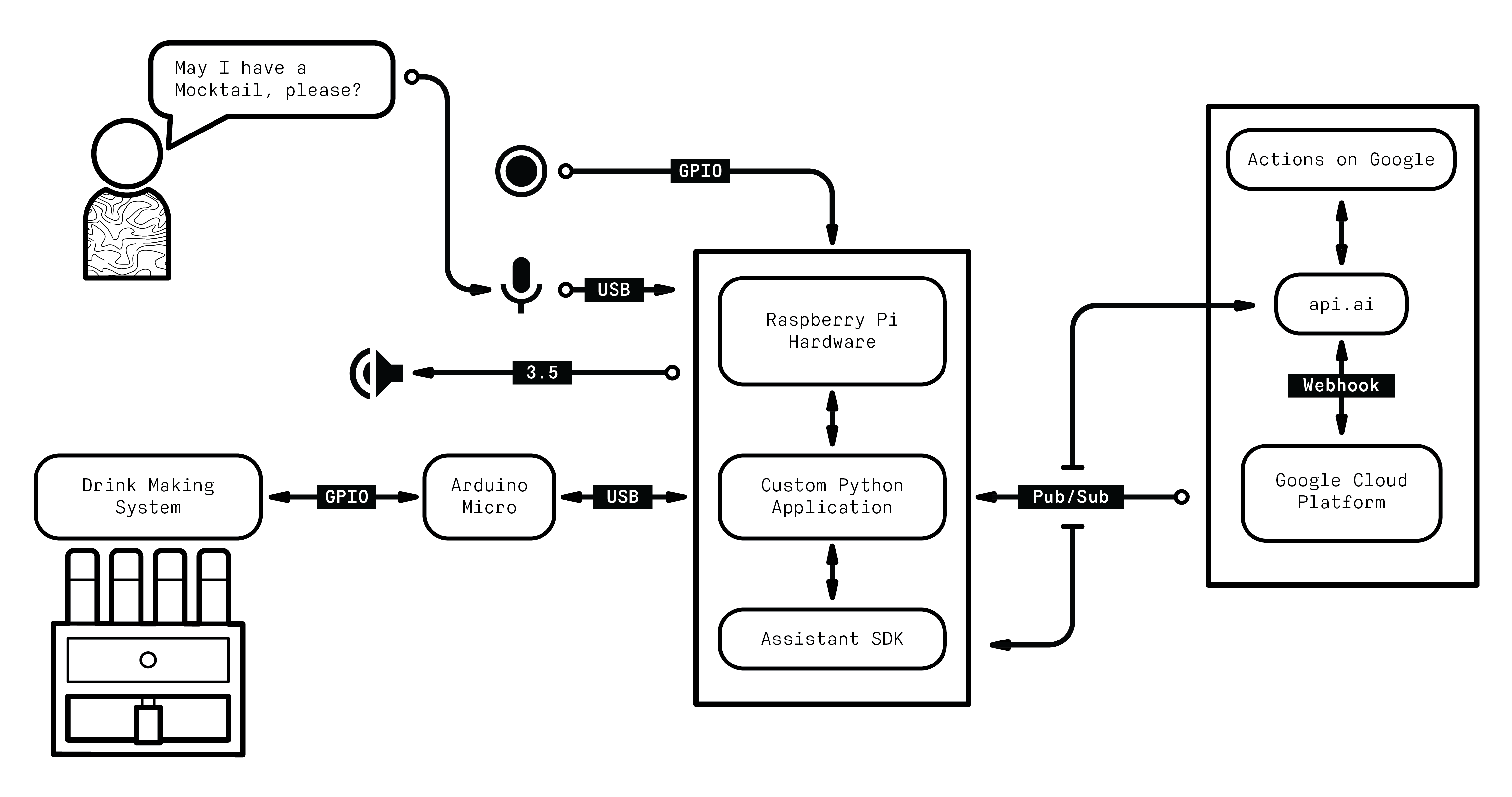

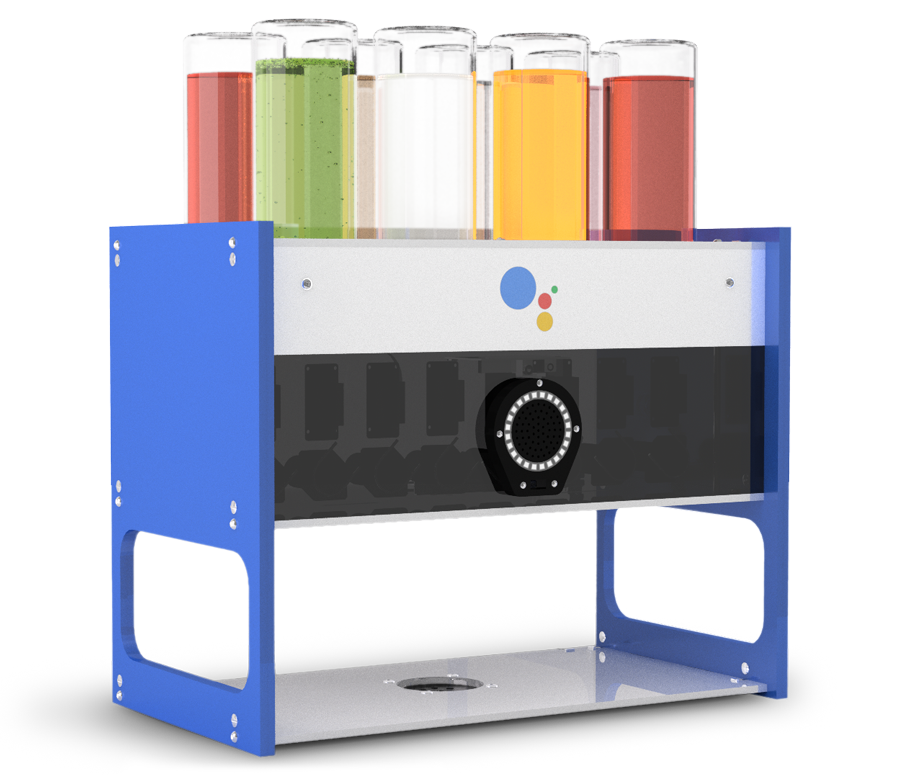

Mocktails Mixer

Source Code

Web Site

Video

Details

Hardware

Software

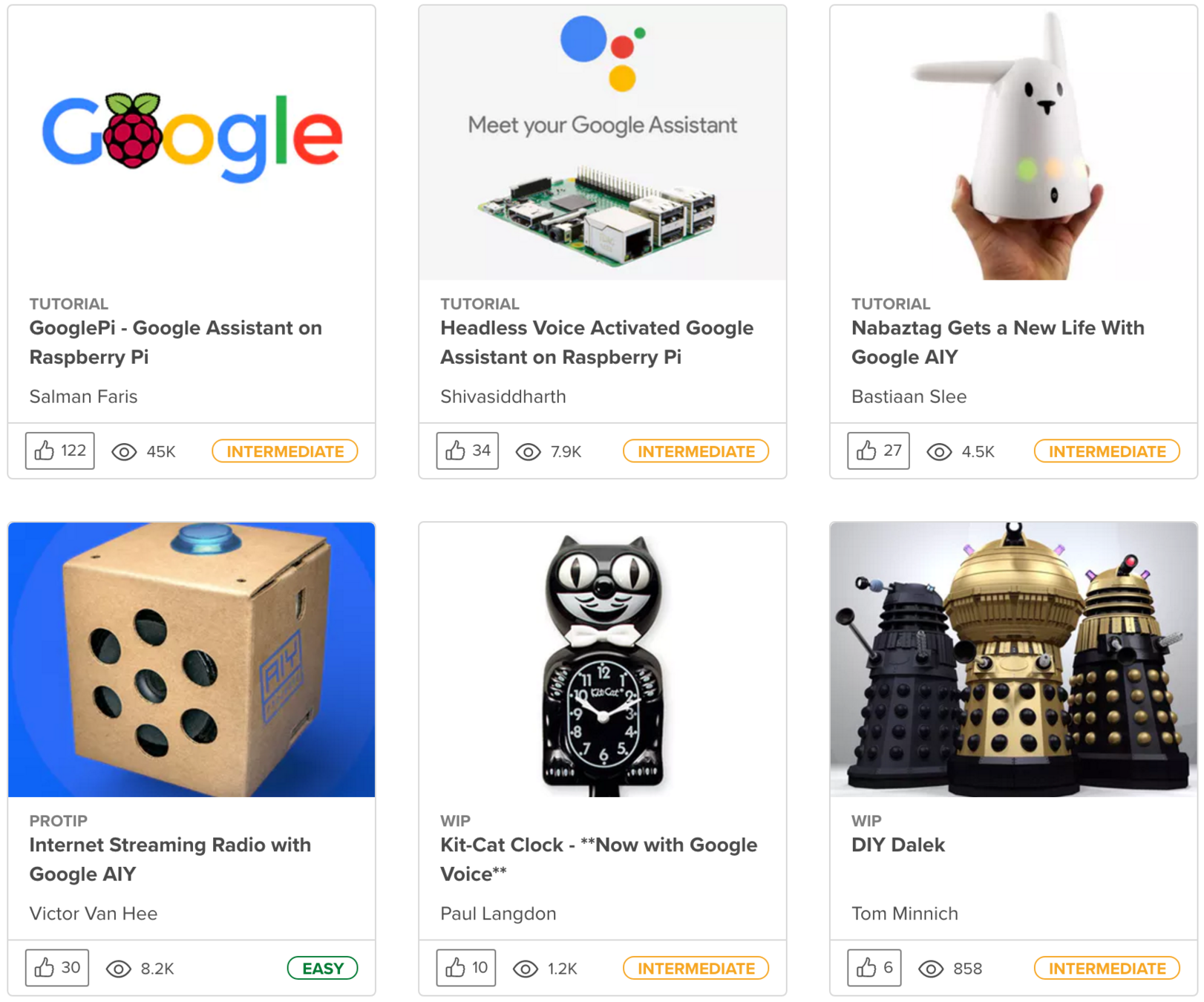

hackster.io

AI-ORÓ

Installed in the Sala Oró of the Museum of Science and Climate of the Science Park of Lleida.

Appendix

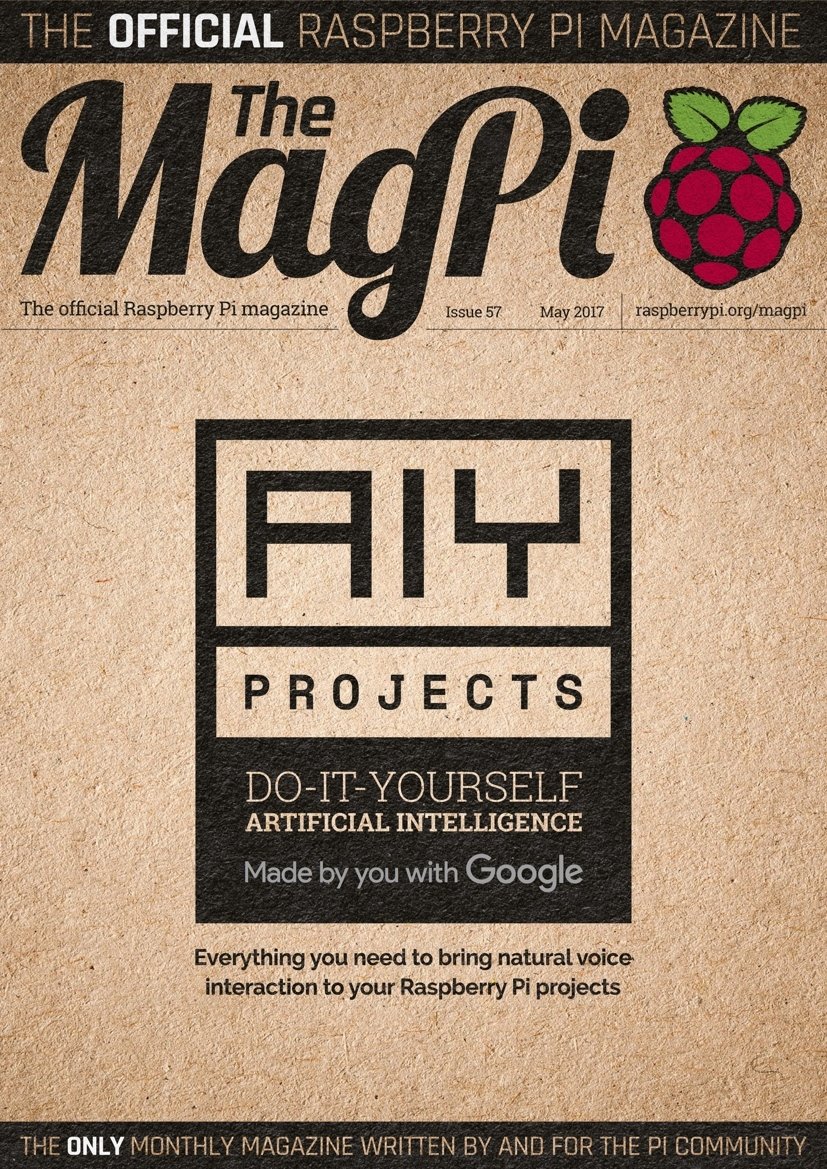

MagPi #57
